Dannmar D4-9 Package 9,000-Lbs. Capacity Four-Posts Lift
Original price was: $5,927.05.$1,436.40Current price is: $1,436.40.
96 in stock
Guaranteed Safe Checkout
Product Overview

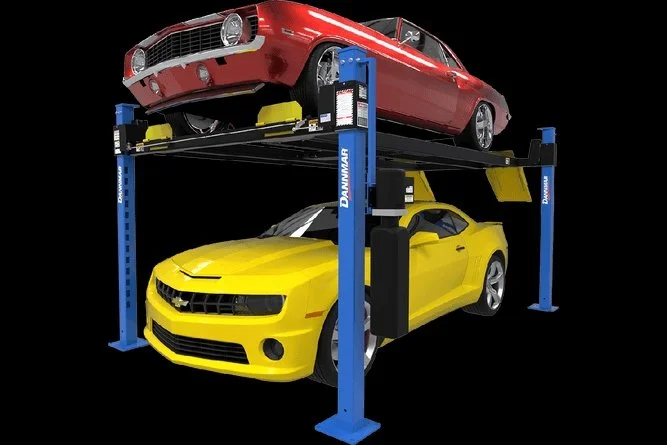

Dannmar’s D4-9 four-post lift delivers versatile productivity while allowing you to easily store project cars, classics, daily drivers, or even heavy pickup trucks. Dannmar’s D4-9 also comes standard with the accessories that most other car lift companies charge extra for.
Product Details & Specifications

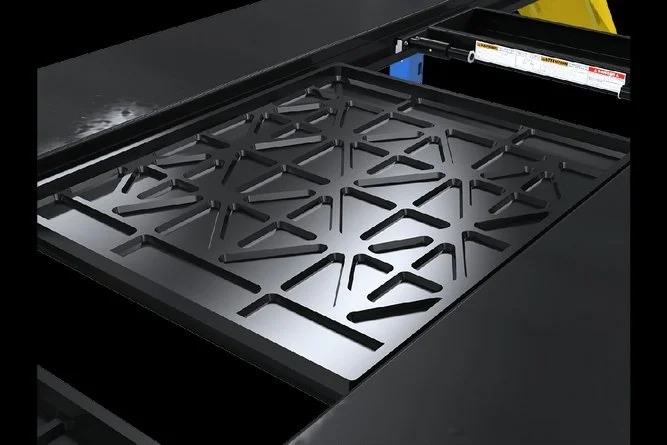

| Mobile caster kits, drip trays, aluminum ramps, and more are all included. But a BIG plus of this four-post lift series is that you can store a vehicle raised above; and while having an open working space below. Dannmar’s D4-9 serves double-duty. | |

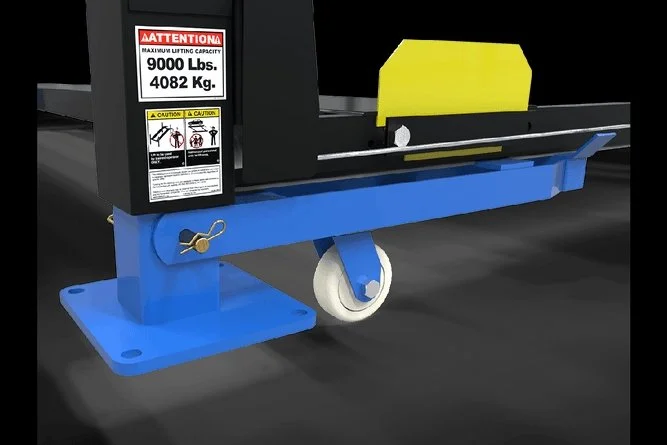

| Features The D4-9 is designed to be fastened to the floor or free-standing. Comes standard with a mobile caster kit, drip trays, mobile jack tray, aluminum approach ramps, and hardened steel tire. Boxed-steel columns are made from structural 4.75” x 4.75″ welded steel tubing. | |
| Columns feature 12” x 12” baseplates 5/8” thick. Manual dead-bolt locks are reliable and safe and are machined directly into the boxed-steel columns. 3/4″ thick steel safety locks are spring loaded for automatic and solid engagement. 13 positive locking positions are spaced every 4 inches. | |
| Secondary slack-cable lock system assures instant back-up safety lock engagement in the event of a cable failure. Exterior steel sleeves with UHMV slides surround each column to ensure positive contact and containment. | |
| Welded-steel runways feature utility rail for jack tray and drip trays and other accessories. Built-in flow restriction integrated into the hydraulic cylinder to prevent free-fall. Oversize baseplates and pull-perimeter cross tube sleeves reduce lateral movement and sway when lift is free-standing. | |
| Low-profile runways are only 5″ high to accommodate low ride-height vehicles. Hardened steel safety lock linkages use 3/8” molded carbon steel rod ends to reduce flex and twist to ensure positive locking and smooth operation. | |
| Precision, reinforced rod ends with spherical bearings are protective coated for corrosion resistance and are designed to provide low friction and high wear resistance. 5/8″ thick top caps. Pull out tire stops on both ends of the lift that allows drive through capability. | |
| Stainless steel lifting cables are rated to handle over 14,000 lbs. each. Pre-assembled cables simplifies installation. 36″ aluminum approach ramps are gusseted to eliminate flex and bending. 3/4″ runway bolts provide positive attachment with increased safety factor. | |
| Optional full-length aluminum platforms can be added to easily store lawnmowers, ATVs, jet skis or motorcycles. Lifting Capacity 9,000 lbs. | |
| (4,082 kg) A | Min |
|---|---|
| Runway Height 5” (127 mm) B | Max |
| Rise 70” (1,778 mm) C | Max |
| Lifting Height 75” (1,905 mm) D | Height of |
| Drive-Thru Clearance 86” (2,184 mm) F | Overall Width 114.5” |
| (2,908 mm) G | Width |
| Overall Length 203” (5,156 mm) I | Outside Length 176.5” |
| (4,483 mm) J | Width Between Runways 37.5” |
| (953 mm) K | Runway Centerline 53.75” |
| (1,365 mm) L | Outside Edge of Runways 72.5” |
| (1,842 mm) M | Runway Width 18.75” |
| (476 mm) N | Length of Runways 165.5” (4,204 mm) Min. Wheelbase @ Rated Capacity 115” (2,921 mm) Min. Wheelbase @ 75% Capacity 100” (2,540 mm) Min. Wheelbase @ 50% Capacity 85” (2,159 mm) Min. Wheelbase @ 25% Capacity 70” (1,778 mm) Locking Positions 13 (spaced every 4” / 102 mm) Time to Full Rise 60 seconds Motor 110VAC, 50-60HZ, 1PH, 20A or 208-230VAC, 50-60HZ, 1PH, 25A Shipping Weight 1,188 lbs. (538.9 kgs) Shipping Dimensions |
