Laguna Fusion F2 Table Saws
Original price was: $1,534.25.$1,084.40Current price is: $1,084.40.
97 in stock
Guaranteed Safe Checkout
Product Overview
Product Description PLEASE NOTE: Laguna is in the process of opening a new 70,000 sq. ft. warehouse to better support growing demand. As they transition to this new facility, you may temporarily experience extended shipping times. If you have any questions, please reach out to us! This is a Special Order item.
Product Details & Specifications
| Please contact us for more information and availability. The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms. | |
| All models are equipped with the precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 2 is the true successor to the original Fusion Table Saw. | |

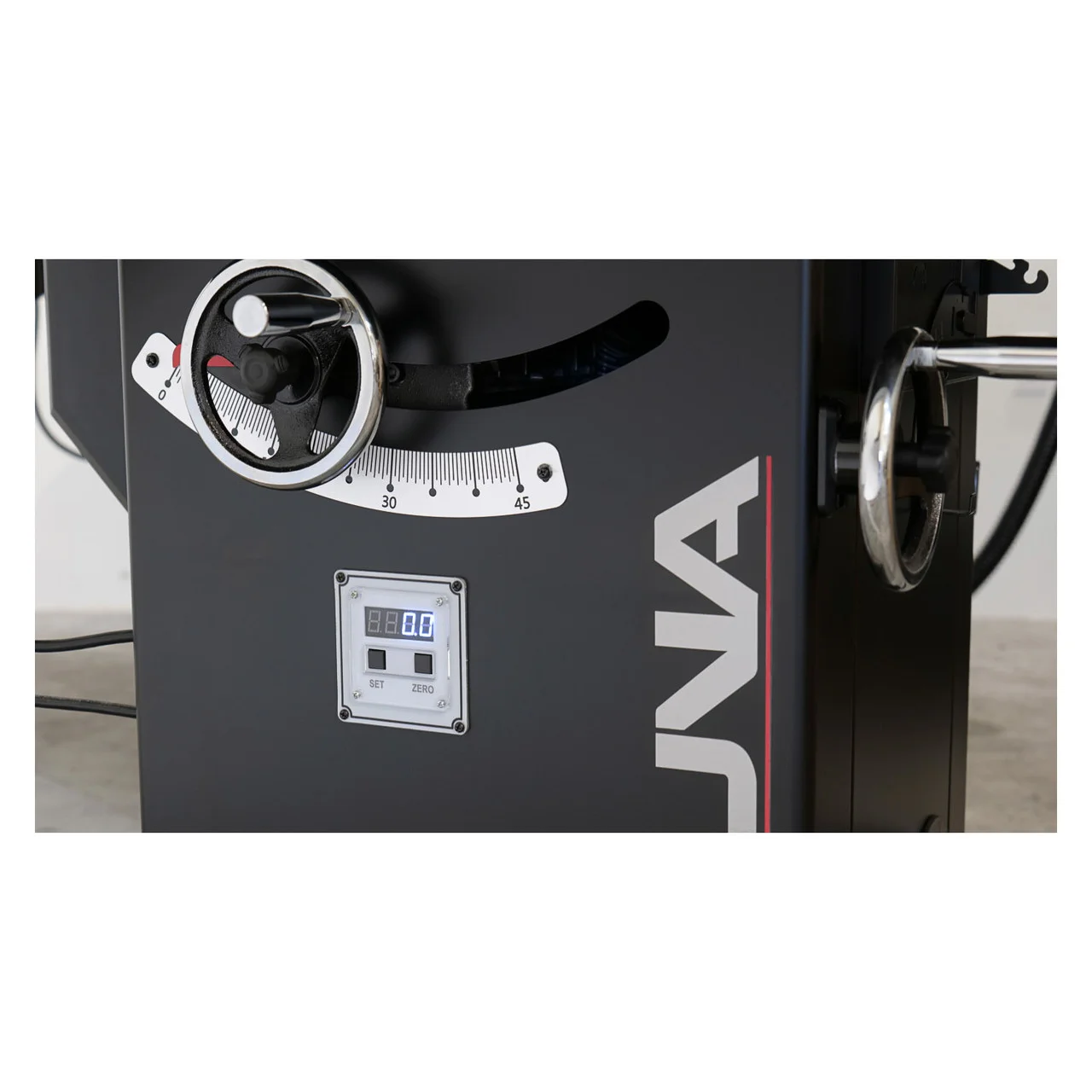

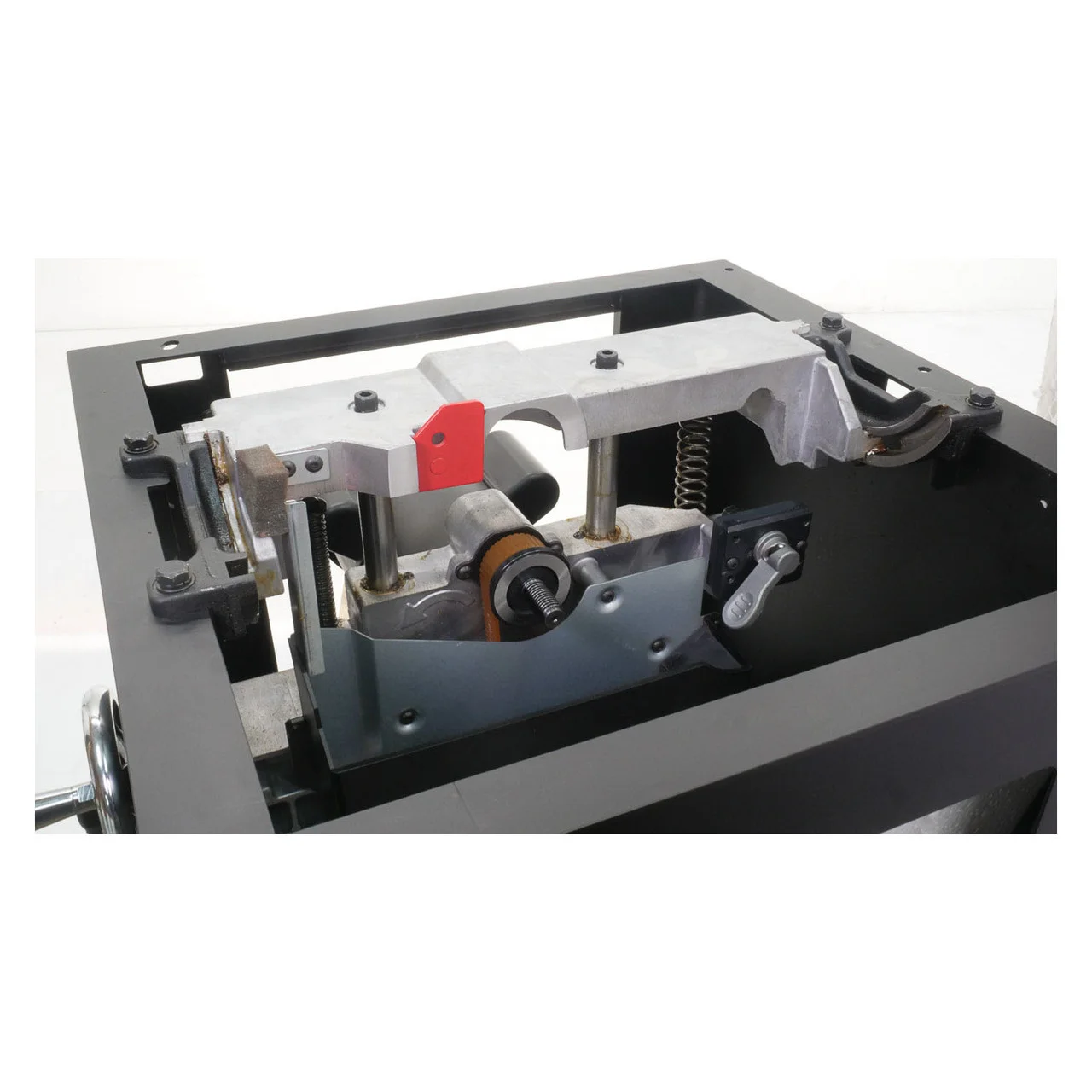

| The task was simple: make a saw that was more refined, more precise, and cleaner. • robust and versatile fence • cabinet mounted trunnion • mechanically assisted blade movements • hybrid cabinet saw with trunnion that rides on two solid steel 1″ posts 2 New Features Now Standard On F2 & F3 Fusions DRO For The Tilt Angle | |
| Of Blade Double Window With Hairline For Hi/Low Fence Features | The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable |
|---|---|
| Power Requirements: 110V-1PH-60HZ* Amperage (FLA) | 14 |
| AMP Motor Power | 1.75 |
| HP Motor Speed: 3450 RPM Starter Switch: Magnetic Plug Included | 5-15 Circuit Breaker Req.: |
| 110V | 25 AMP Receptacle Req. : |
| 5-15 Certification: CSA C/US 175370 Net Weight | 275 lbs |
| 36″ STD, 52″ OPTION Blade Size: 10″ Vertical Cut Height | 3 1/8” 45° Cut Height: 2 1/8″ Tilt: 0-45° Left Min. Kerf: 3mm ~1/8″ (actual: 0.1875″) Max |
| Kerf (Dado Blade): 13/16″ Arbor Speed: 4500 RPM Arbor Diameter | 5/8″ Mitre Slot: 3/4″ to 1″ T Throat Plate: Zero Clearance Square Composite, w/ adjustment |
| Fence: Double Rail Cam Action More Info: Overall Size | L 39 3/4″, W 65 5/8″, H 38″ w/ |
| 52″ Extension | +16″ |
| H 34 3/4″ Table: L 27″, W 20″ Extension Wing | L 27″, W 12″ (x2) |
| Throat Plate | L 14 5/8″, W 4 1/16″, th |
| 1/2″ Dust Port Outer Diameter: 3 7/8″ CFM Requirement | 350 CFM |
| Trunnion Cast Aluminum Alloy Shipping Weight | 368 lbs |
| L29-3/4″ W46-5/8″ H42-5/8″ Industrial Use: NO Enclosed Cabinet | YES |
| YES Integrated Tool Holder: YES TEFC Motor: YES 110V Power | YES |
| Iron Upper Trunnion: NO Accessories & Options: Dado Throat Plate | PTSF236110175-001 Thin Kerf Riving Knife: PTSF132110150-0130-000 Right of wing table: |
| NO Outfeed Table Attachment: NO Dust Collection Guard | Included with purchase |
| Mitre Guage | Included with purchase |
| Blade Guard | Included with purchase |
| Arbor Wrench, Riving Knife, Standard Throat Plate | Included with purchase |
