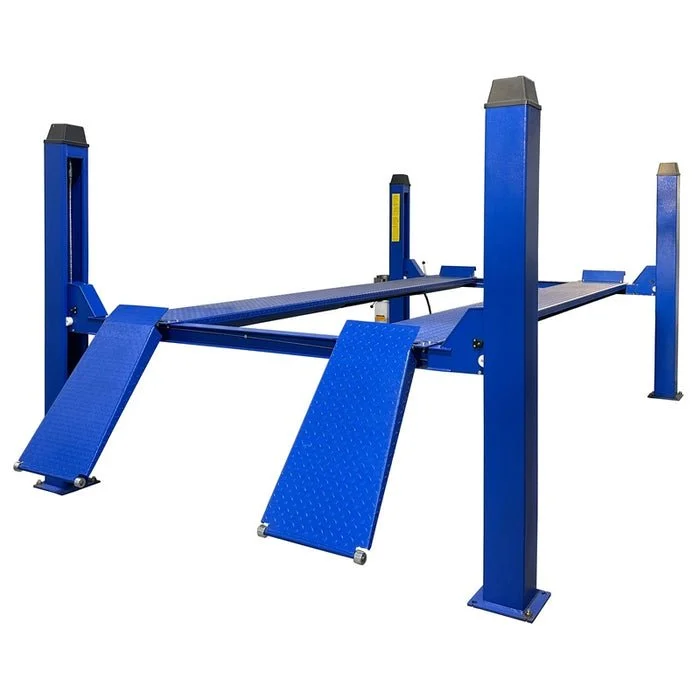

Tuxedo FP12K-K 12,000 lb Four Post Lifts – Cable Driven
Original price was: $5,490.19.$1,436.40Current price is: $1,436.40.
97 in stock
Guaranteed Safe Checkout
Product Overview
Tuxedo 12,000 lb Four Post Lift: Cable Driven – *Jack sold separately Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and redundant safety locks
Product Details & Specifications
| Features | 12,000 lbs Capacity Cable Driven 176 max wheelbase Single Point Manual Lock Release Adjustable Locking Positions Slack Cable Safety No |
|---|---|
| Overhead Obstructions Powder Coat Finish Specifications | Lift Model FP12K-K Capacity 12,000 lbs. Overall Length w/Ramp 232-1/2″ Overall Width(Without Power Unit) 123″ Overall Width (With Power Unit) 134″ Overall Height 84″ Max Rise Height 67-1/2″ Min Height 7″ Width Between Posts 105″ Length Between Posts 177″ Width Between Runways 36-1/2″ Width Of Runways 19″ Max Wheelbase 167″ Ramp Length 35″ Max. Clearance Under Runway 63-1/4″ Drive-Thru Clearance 87-1/2″ Base Plate |
| 11″ X 11″ Power Requirement 220V | 20 Amp – 1PH Ship Weight 2,255 lbs. Min Bay Size 15″ x 23″ |
